Horizontal Injection Mold





Inventory

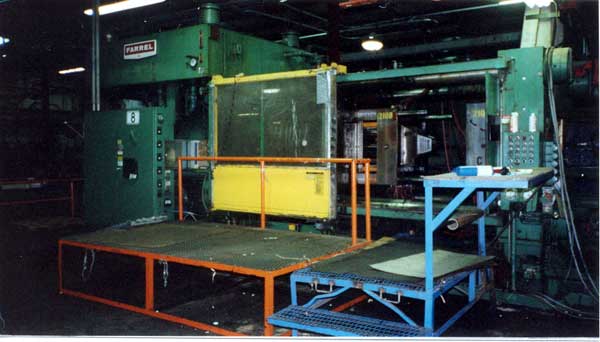

1500 Ton Farrel Injection Mold Machine (#13202)
Manufactured 1982



Specifications

Features

SHOT SIZE: 260 oz.
TIE BAR SPACING: 52" x 52"
PLATEN SIZE: 76.5" x 76.5"
MAX. DAYLIGHT: 125"
CLAMP STROKE: 60"
MAX/MIN MOLD THICKNS: 29" Min.
MODEL: 1500H260

EQUIPPED WITH:
- Barber Coleman Maco III Control
- Hydraulic K.O.
- Core Pull
Dimensions: 500" x 120" x 150"
Weight: Approx. 204,000 lbs.
