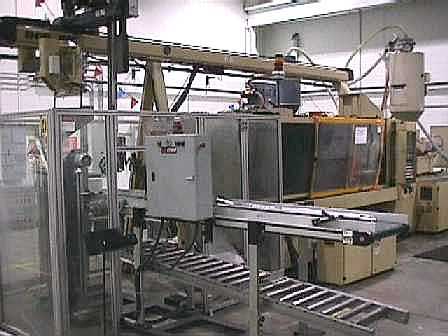

300 Ton Engel 2-Shot Injection Mold Mach (#14388)
Manufactured 1997



Specifications

Features

SHOT SIZE: 15.04 oz./3.2 oz.
TIE BAR SPACING: 25.04" x 25.04"
PLATEN SIZE: 35.43" x 35.43"
CLAMP STROKE: 23.62"
MAX/MIN MOLD THICKNS: 24.53" /7.87"
MODEL: ES700HP/200H/300AH

EQUIPPED WITH:
- Engel CC100 Control
- Motion/No Motion
- Inline press 50 HP with 90 degree parting line
injection unit - 20 HP
- Rotary platen
**Also available with robot - PRICE...$200,000.00
Engel 3 Axis Robot - Pick & Place
- A-B-C Pneumatic
- 360 degree indexing
- 90 degree flip
