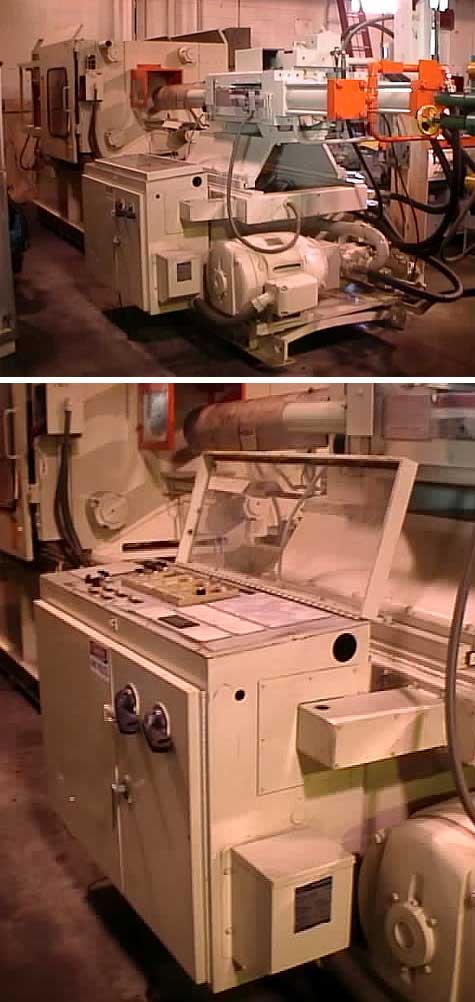

300 Ton Van Dorn Injection Mold Machine (#I813)
Manufactured 1977

Specifications

Features

SHOT SIZE: 30 OZ.
TIE BAR SPACING: 24" X 24"
PLATEN SIZE: 39" X 36.5"
MAX. DAYLIGHT: 46"
CLAMP STROKE: 9" - 22"
MAX/MIN MOLD THICKNS: 24" /8"
HYDRAULIC KNOCK OUTS: YES
CORE PULL: YES
MODEL: SCI

EJECT BOOST
BARBER COLMAN 520 CONTROLLER
PULSATING EJECTORS
SCREW PULLBACK
50 HP, 1180 RPM, 230/460 VOLT, AMPS 128/64
CURRENTLY WIRED FOR 460 VOLT
