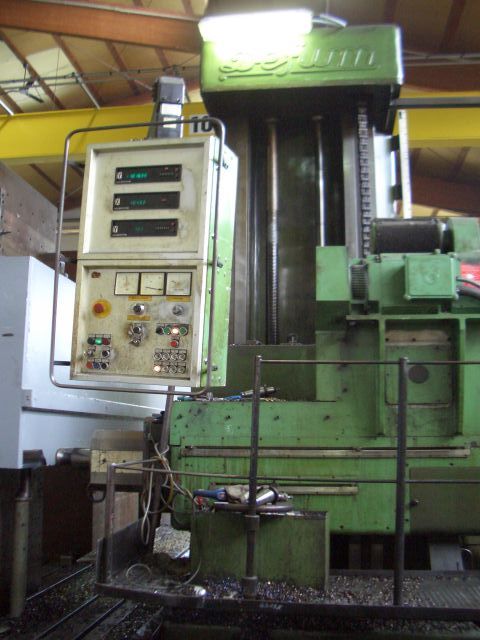

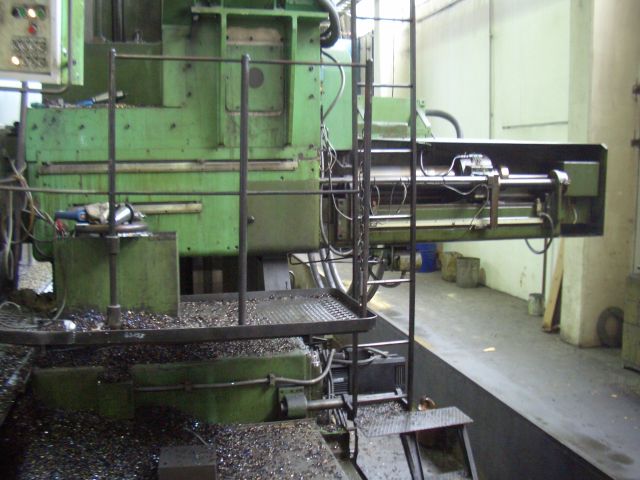

Defum 150 mm Floor Type HBM WHB150

- model WHB 150
- new 1974 and electrically modernized 1989 from austrian retrofitting company for Siemens

features of the machine:

* bed from castiron with ripped construction and wider slide ways for slide of column
* hydrostatic for column travel on the bed
* column of ripped design with ground guide ways
* headstock with drive mechanism for spindle and milling spindle
* ram with hardened guide ways, standard face for clamping of milling heads
* working spindle is nitridied with ISO clamping taper
* telescopic covers on bed

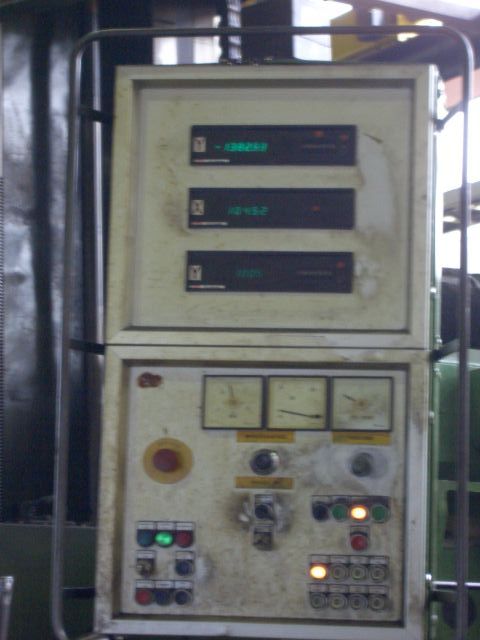

* digital read out of austrian maker in 3 axes

Technical data:
diameter of working spindle 150 mm
taper in the spindle ISO 50
spindle travel (W) 1200 mm
ram size     380x380 mm
diameter of milling spindle 330 mm
centering diameter on milling spindle      196,85 mm
max travel of the ram (Z) 500 mm
spindle speed ; 2,5 - 1000 rpm
headstock travel on the column (Y) 2000 mm
column travel on the bed (X) 7000 mm
feeds of  spindle and ram, column and headstock 5-1000 mm/min
number of feeds   24
rapid traverse 1500 mm/min
max boring diameter 800 mm
max diameter for facing withh face plate 1200 mm
max drilling diameter in castiron   75 mm
max diameter for milling head 400 mm
thread cutting metric    1,5 - 20 mm
size of the machine with floor plate 11600 x 3000 x 4800 mm
Weight of machine 62000 kg

Accessories:

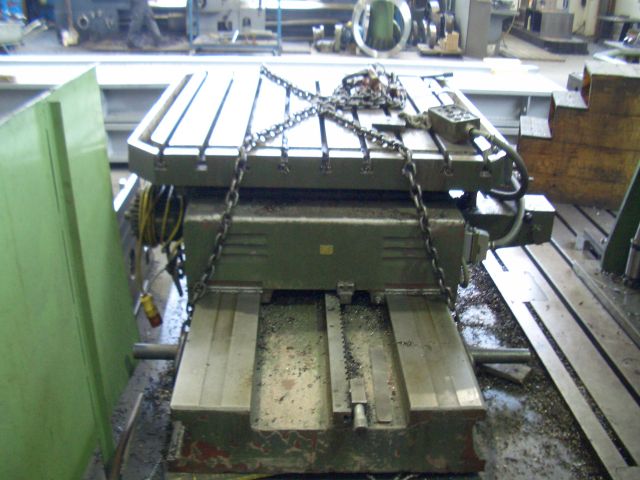

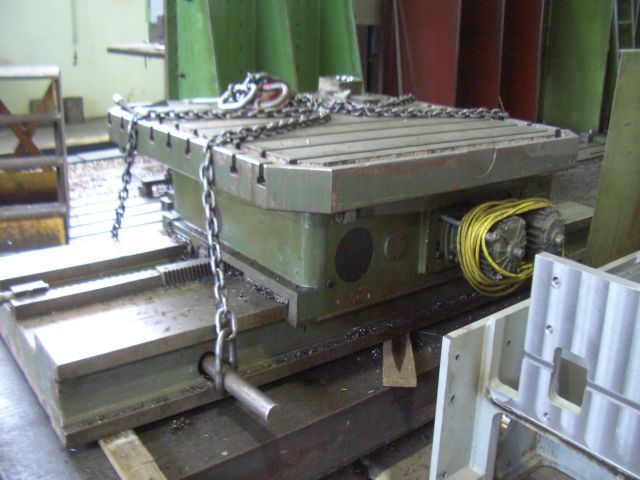

rotary table model JBWA-16    1600 x 1600 mm    10000 kg
angular milling head

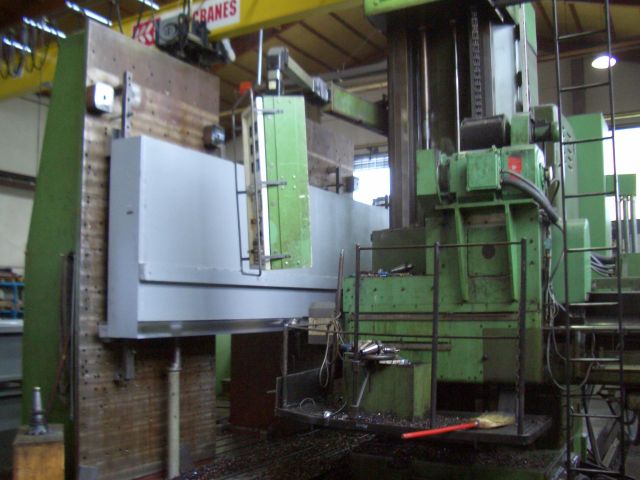

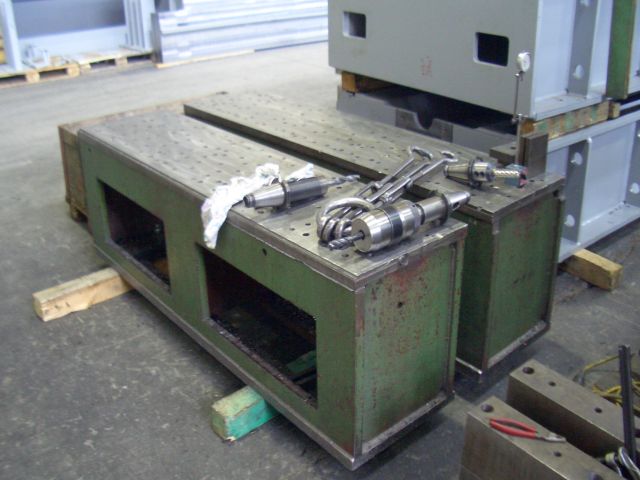

2 pcs high clamping angle made by owner
toolings available with the machines
digital read out
6 pcs floor plates 3500x1750x350 mm
