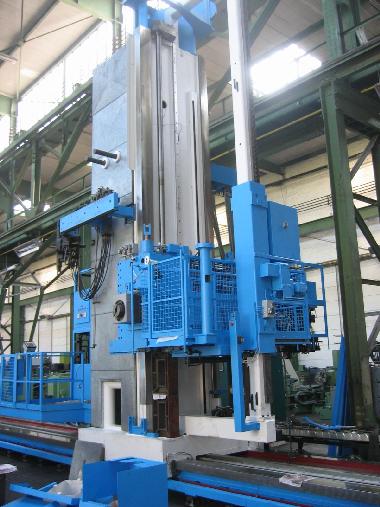

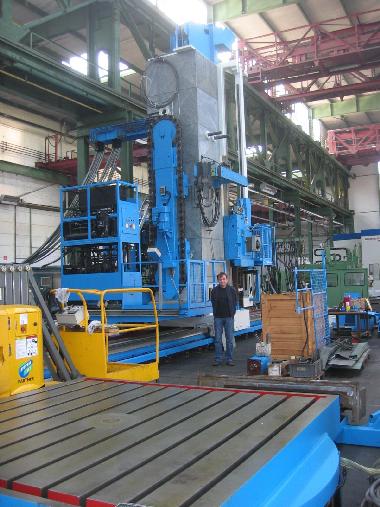

Schiess-Froriep 180 mm CNC Floor Type HBM 1FB180

- manufacturer: Schiess-Froriep
- model: 1 FB 180
- new in 1987, Overhauled in 2006
- CNC HeidenHain iTNC 530 in 7 axis

- spindel diameter: 180 mm
- ram section: 340 x 400 mm
- spindle taper: ISO 50/60
- spindle stroke: 950 mm
- ram stroke: 900 mm
- X/Y: 18500/4500 mm
- spindle turning speed range: 3.15 - 1000 rpm
- rotary table: Schiess 2250x2250 mm
- spindle drive: 85 kW
- feed speeds: 0.1 - 5600 mm/min
- total power requirement: 130 kW
- weight of the machine excluding floor plates: 110 ton
- dimensions: 25000x11500x7800 mm
