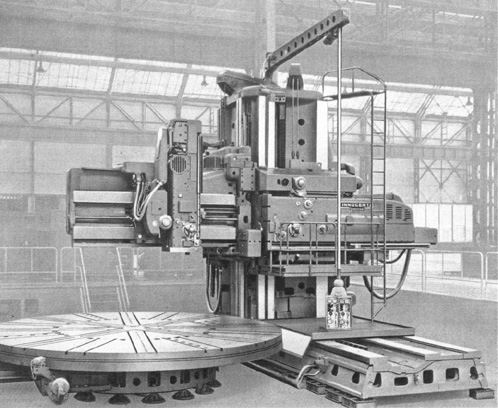

INNSE VTL (Single-column) + Floor Borer

1. Manufacturer: INNSE
2. Model: CWB FALT 204
3. New in 1968

 Specification
1. Single-Column VTL
- faceplate diameter: 4080 mm
- swing diameter: 8000 mm
- turning height: 3400 mm
- faceplate turning speed range: 33 U/min
- table load: 60 ton
- ram head - vertical travel: 1500 mm
- horizontal adjustment: 2000 mm
* boring & milling possibility in combination with floor borer

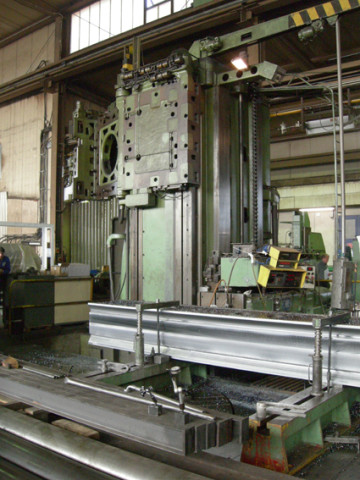

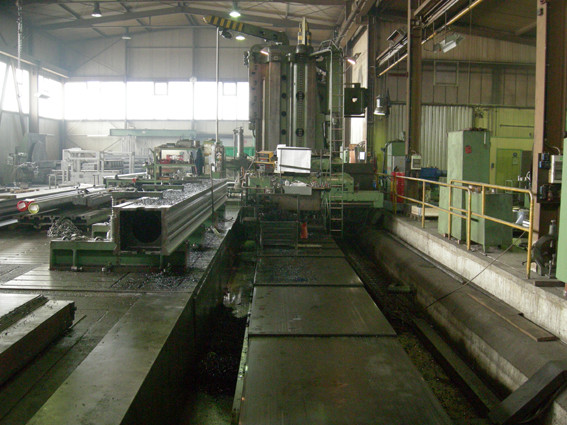

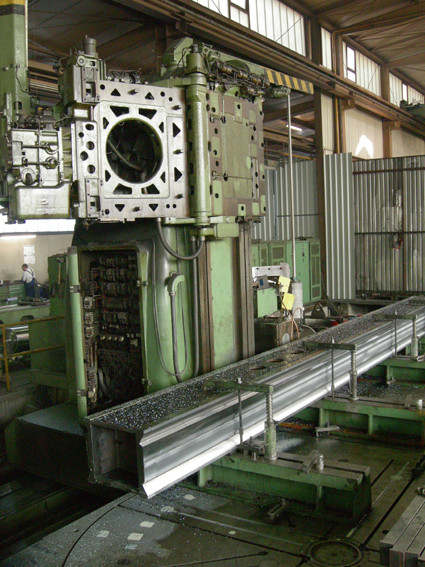

2. Ram-type Floor Boring and Milling Machine
- spindle diameter: 204 mm
- X-travel: 14500 mm
- Y-travel: 2980 mm
- spindle stroke: 1500 mm
- ram stroke: 750 mm
- boring spindle diameter: 147.5 mm
- spindle turning speed range: 640 U/min
- spindle taper ISO: 50
