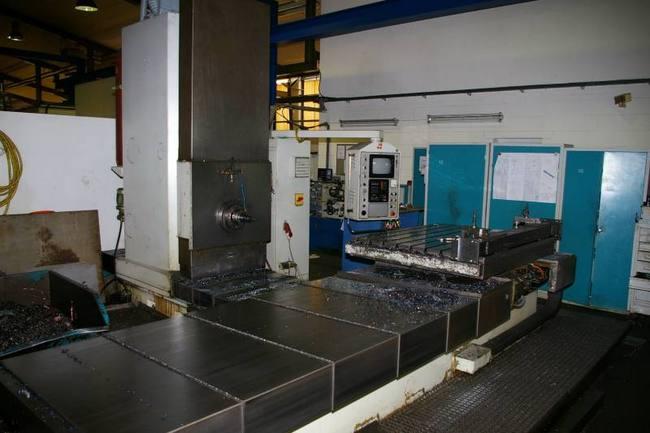

Juaristi 125 mm CNC Table Type HBM TS1

CNC-boring mill - horizontal - table type
brand: JUARISTI
model TS 1
year of manufact. 1986

CNC-control Heidenhain TNC 155 - 4 axis control

travels: X - Y - Z = 2500 x 1000 x 1150 mm, W: 600 mm
spindle diameter: 125 mm
spindle speed range: 15 - 2300 rpm
spindle motor power: 37 kW
gear steps: 2
tool taper: ISO 50 DIN 69871
table surface clamping: 1.200 x 1.500 mm
table rotary index: 4 x 90 degree
max. weight of workpiece: max. 6 tons
