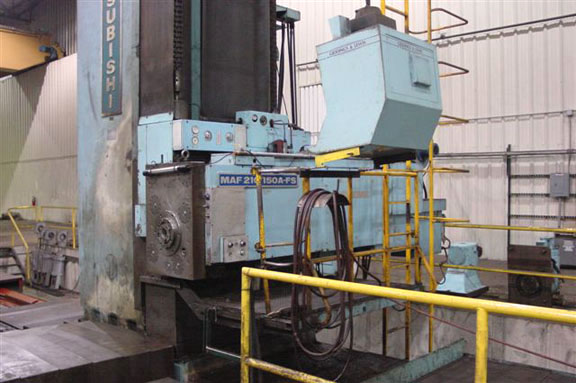

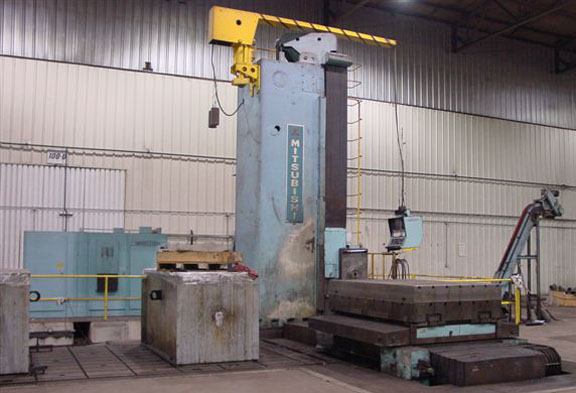

Mitsubishi CNC Floor Type HBM MAF-210/150A-FS

Mitsubishi CNC Floor Type Horizontal Boring Mill
Model: MAF-210/150A-FS
Age: 1981, CNC Controls Upgraded in 1996

All New Wiring, Magnetics, AC Servo Drives
Giddings & Lewis 8000B CNC Control W0 mm Color CRT

Spindle Diameter ..................... 150 mm
Milling Spindle Diameter ............. 210 mm
Milling Spindle End Diameter ......... 235 mm
Vertical Headstock Travel, y ......... 3000 mm
Horizontal Column Travel, x .......... 8000 mm
Spindle Travel, z .................... 900 mm
Ram Travel, z-2 ...................... 700 mm
Total Axial Travel ................... 1600 mm
Ram Cross Section .................... 610 mm x 610 mm
Rapid Traverse, x,y,z Axes ........... 4801 mm/min
Spindle Taper ........................ #50 ANSI
Spindle Speeds,Inf.Variable .......... 4-800 RPM (3-Ranges)

EQUIPPED WITH:
G & L 8000B 5-Axis (3-Axis Contouring)
Allen Bradley AC Servo Drives X,Y,Z,W,W-2
Allen Bradley Series 1395-B 56 KW Spindle Drive
Inductosyn Linear Scales
Renishaw M1-14 Probe
1600 mm x 2489 mm Rotary Table (DIT-J 16x25 AWC)
90 Degree Indexing .0127 mm Positioning Accuracy,
2500 mm Infeed Travel, Indexing By M-Code
3048 mm x 6096 mm x 305 mm Thick T-Slotted Floor Plate
Power Draw Bar
Full Length Chip Conveyor (254 mm Wide)
Hardened & Ground Ways (Replaceable On Y-Axis)
3-Runway Sections, 4 m51 mm4 m1 mm3 m
Way Covers On X & Y Axes
45 KW / 56 KW Spindle Motor

ATTACHMENTS:

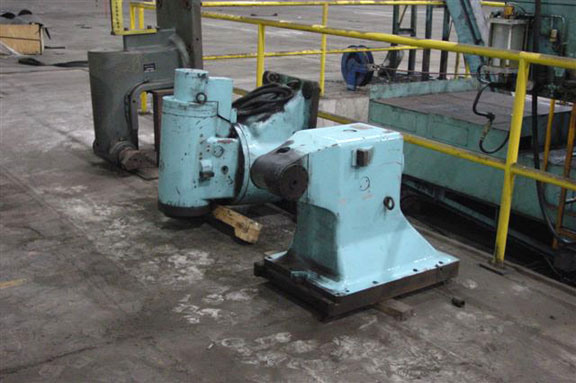

Right Angle Head w0 mm Reach #40 Taper,
Double Right Angle Head w0 mm Reach, Heavy Duty
Right Angle Head w0 mm Reach
