Posted by WMW on November 11, 2006 at 02:13:46:

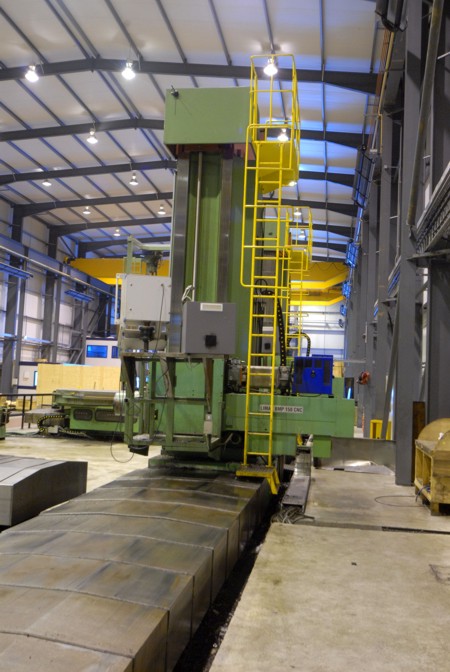

CNC Floor Type Horizontal Boring Mill
- manufacturer: WMW
- model: BP150
- new in 2001

- spindle diameter: 150 mm
- vertical head travel, Y: 3000 mm
- column travel, X: 6000 mm
- spindle travel, Z: 1000 mm
- taper in spindle: ISO No. 50
- spindle speeds: 4-2500 rpm
- rapid traverse: 393.70 IPM
- spindle motor: 37kW/50hp
* CNC infeeding rotary table
- table size: 3500 c 3500 mm
- W-Axis table travel: 1500 mm
- table weight/capacity: 54ton/80ton
- B-Axis table rotation (Contouring): 360,000 positions
* Siemens 840D CNC control system, DNC communication link, Renishaw probe system, SPindle support, Right angle milling head, Univeral miling head, Heienhain liner scales
