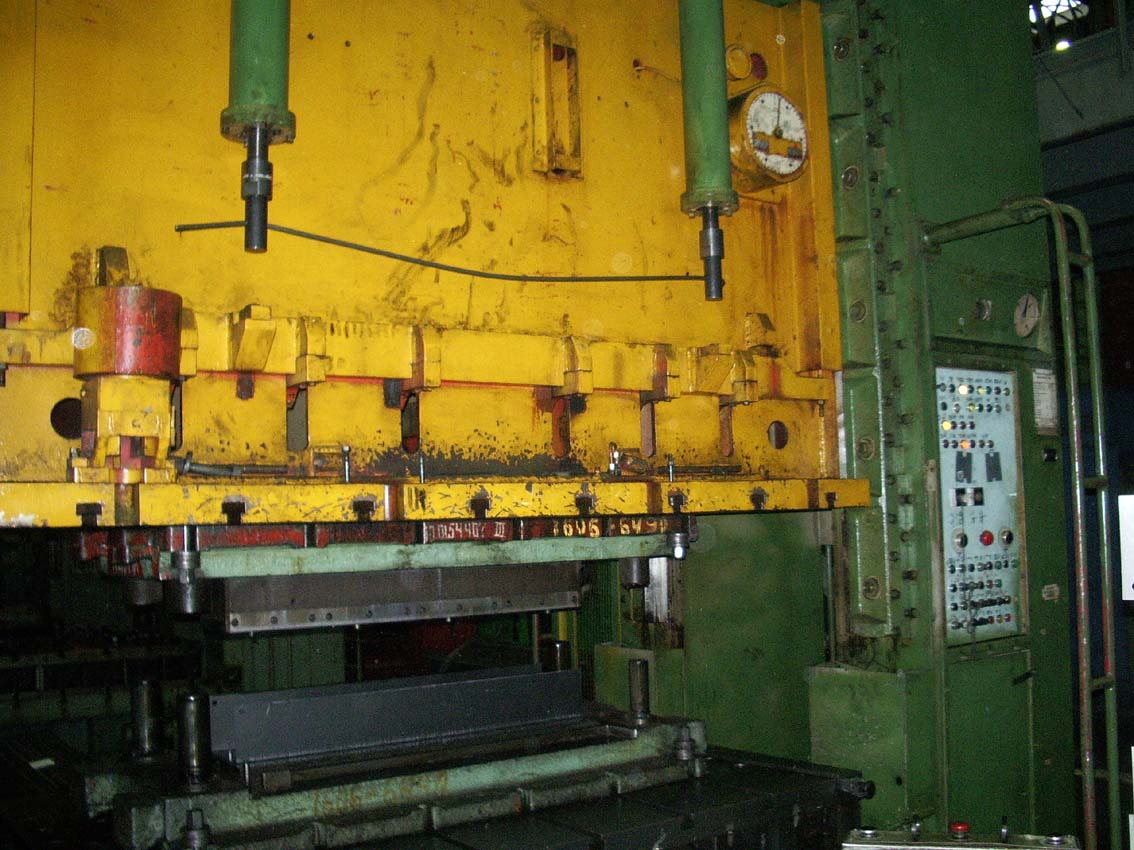

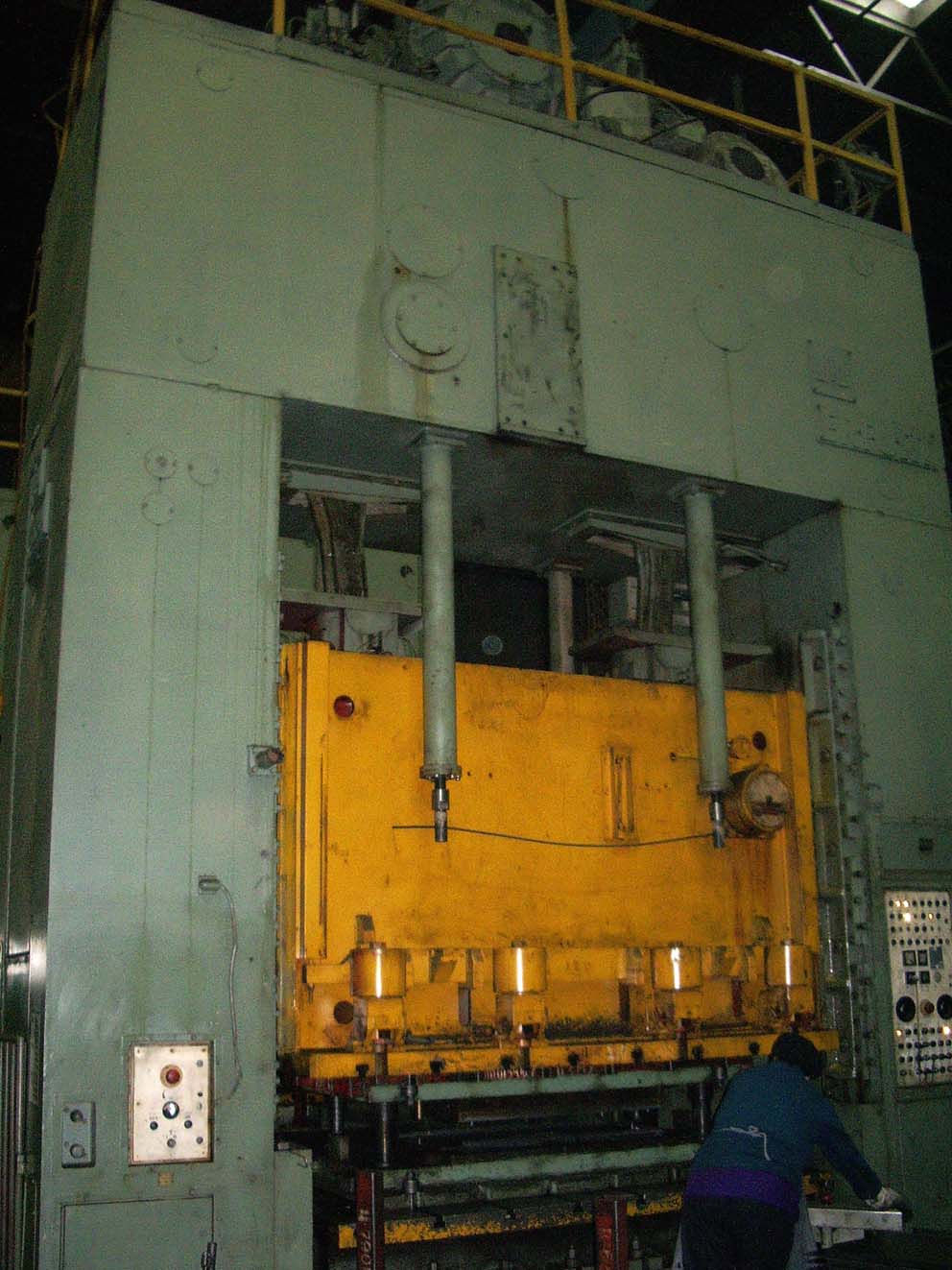

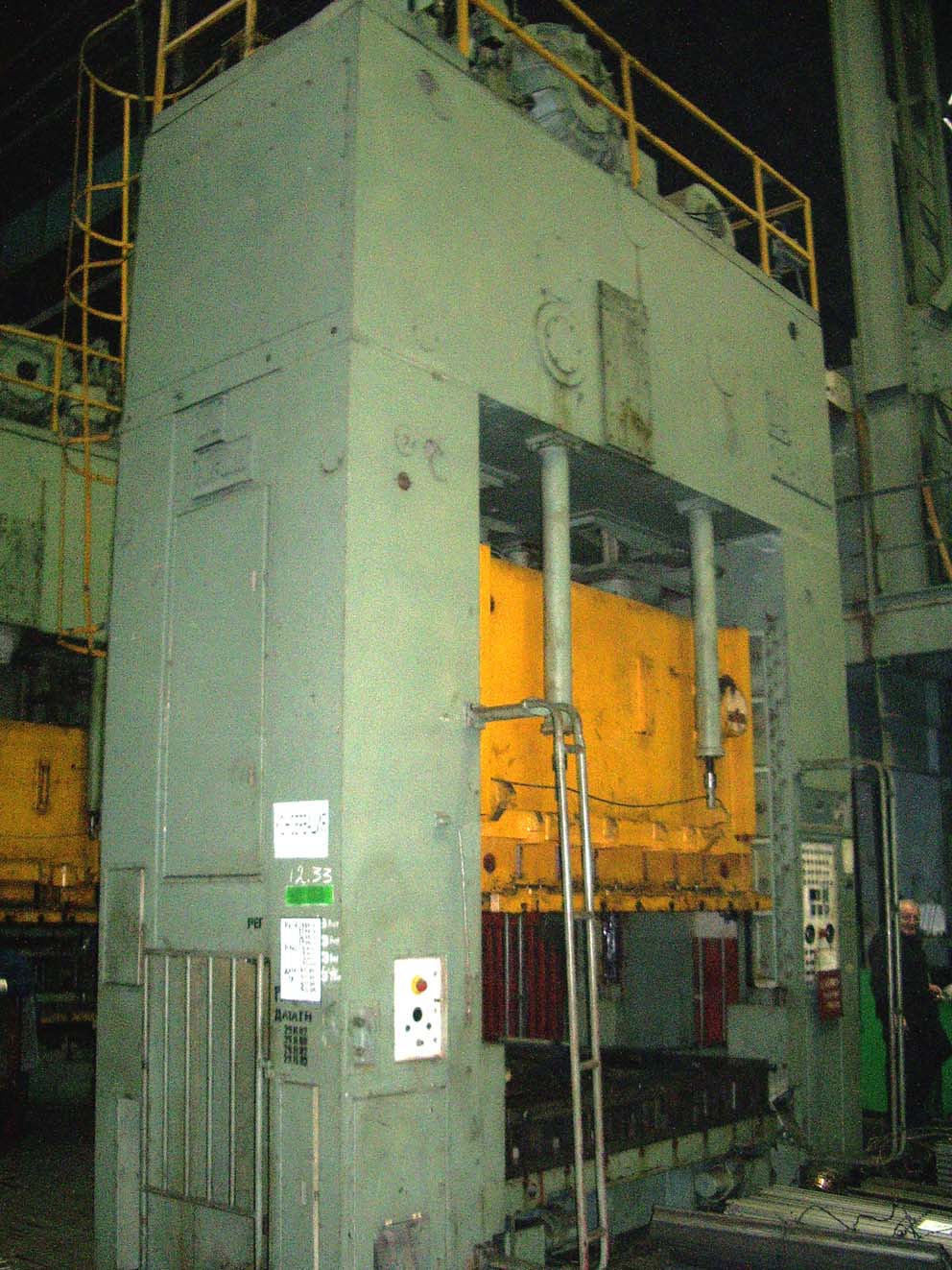

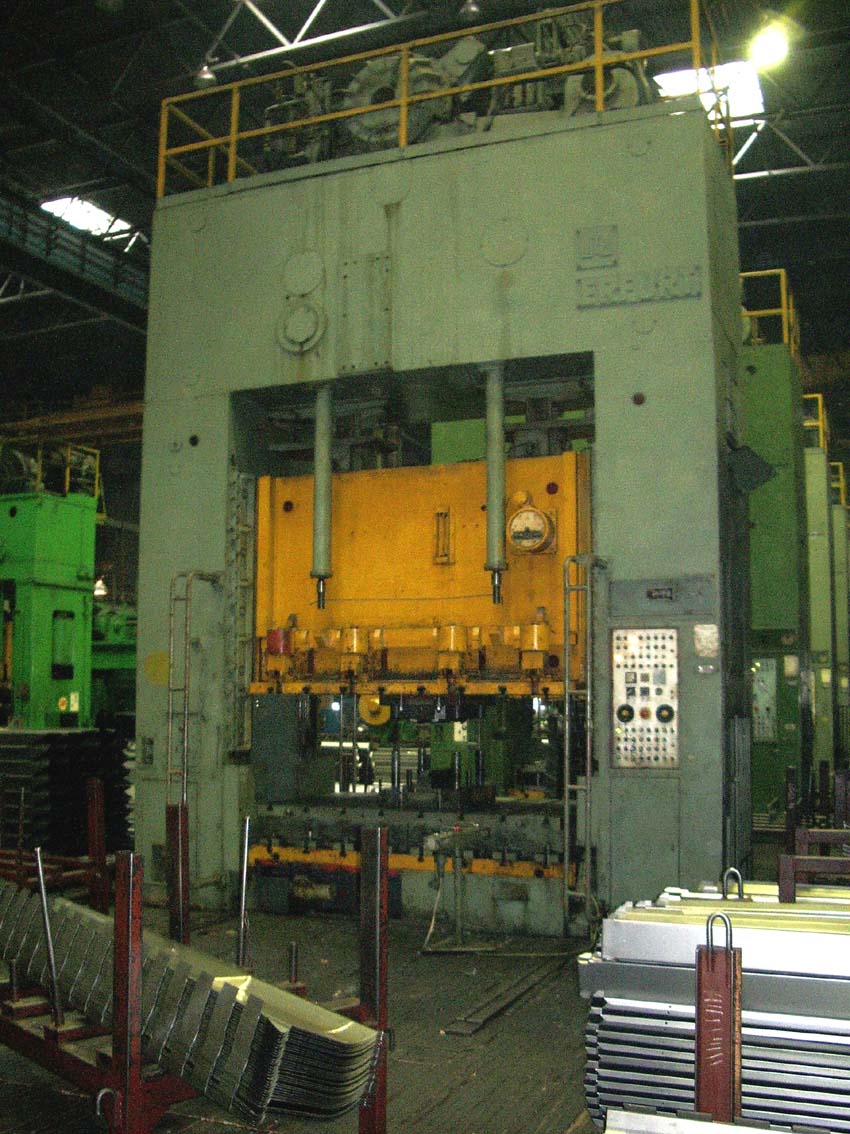

Erfurt 315 ton Mechanical Press

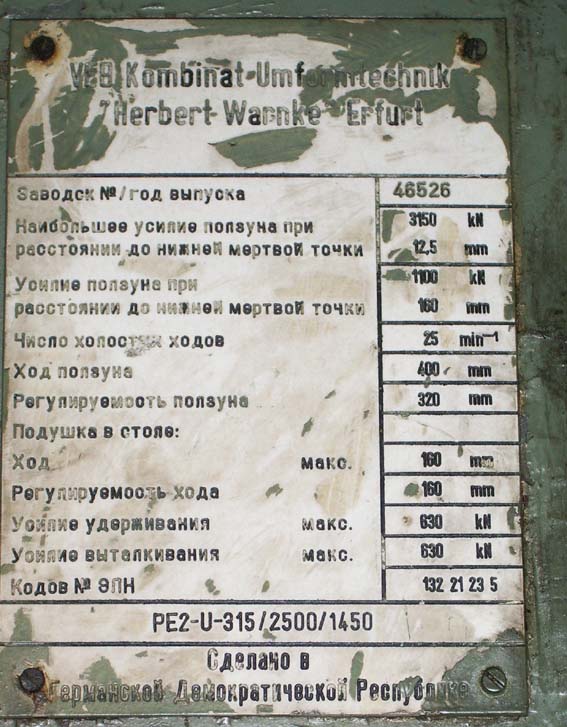

Erfurt PE 2-U-315/2500/1450
YOM: 1988
Max. ram force: 315 ton
Slide stroke: 400 mm
Slide adjustment: 320 mm
Max. shut height between bolster plate and slide (stroke down, adjustment up): 900 mm
Bed area (width x depth): 2500 x 1450 mm
Slide area (width x depth): 2500 x 1450 mm
Opening in the bed (width x depth): 2280 x 1020 mm
Main motor rating: max. 45 kW
Numbers of stroke per minute: 25
Cushion force in the bolster: 63 ton
Cushion stroke: 160 mm
Height above floor: 7100 mm

* 5 sets
