Scharmann 160 mm CNC Floor Type HBM Heavy Cut 2.1

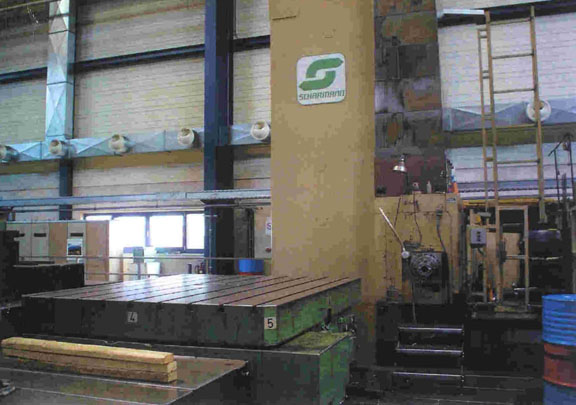

160 mm SCHARMANN CNC Floor Type Horizontal Boring Mill
Model: Heavycut 2.3
Age 1983

Spindle Diameter ..................... 160 mm
Ram Size ............................. 325 mm X 325 mm
Spindle Taper ........................ #50 ISO
Vertical Head Travel, Y .............. 3500 mm
Column Travel, X ..................... 9992 mm
Ram Travel, Z-2 ...................... 699 mm
Spindle Travel, Z .................... 800 mm
Total Axial Travel ................... 1498 mm
Spindle Speeds: ...................... 0-1250 RPM
Rapid Traverse: ...................... 6000 mm/min

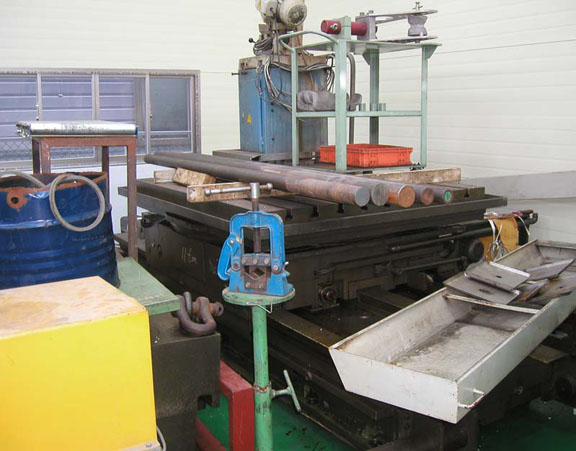

ROTARY TABLE: Scharmann Model TDV-4    (Included in Price)
Table Size ........................... 1600 mm x 2000 mm
Longitudinal Travel, V ............... 1500 mm
Table Indexing ....................... 4 x 90 Degrees
Table Load Capacity .................. 25 Tons

ROTARY TABLE: Sacem MGL-2500/C2        (Additional Cost)
Table Size ........................... 2000 mm X 2500 mm
Longitudinal Travel, V ............... 1000 mm
Table Indexing ....................... 4 x 90 Degrees
Table Load Capacity .................. 25 Tons

EQUIPPED WITH:
Siemens 8MC CNC Control
60-Station Automatic Tool Changer

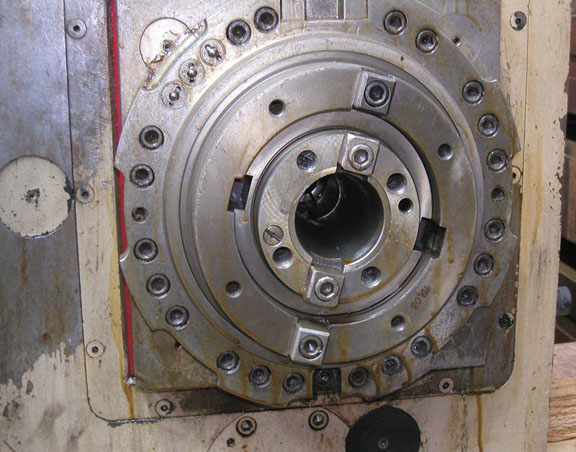

Universal Milling Head
Right Angle Head
Extention Angle Head
Set Up Stand

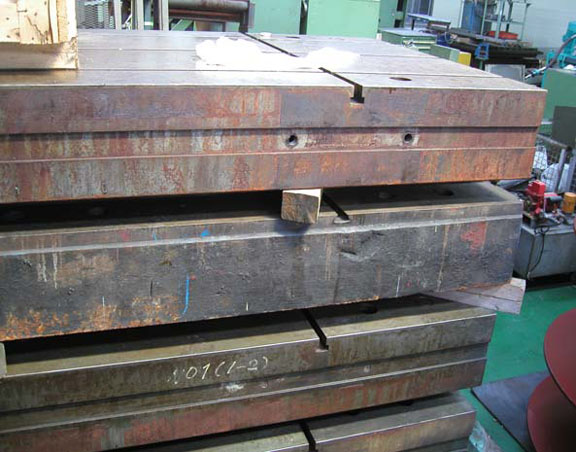

(6) T-Slotted Floor Plates
Chip Conveyor
Coolant Unit
Spindle Chiller Unit
Large Quantity of Tooling
65 KW Spindle Drive Motor
