Schiess 225 mm CNC Floor Type HBM FB33/22.5 Ram Type

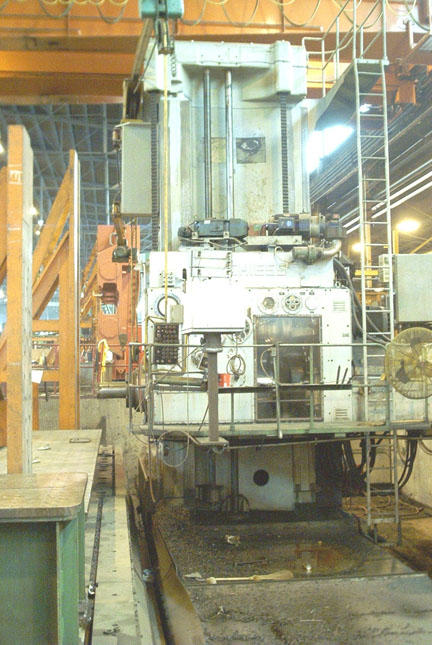

225 mm Schiess CNC Floor Type Horizontal Boring Mill
Age: 1957 CNC Retrofit in 1998
Model: FB 33/22.5 Ram Type
Serial Number: 43196

Spindle Diameter .............. 225 mm
Ram Diameter .................. 600 mm
Vertical Head Travel, y ....... 4000 mm
Column Travel, x .............. 10200 mm
Spindle Travel, z ............. 2000 mm
Ram Travel, z-1 ............... 800 mm
Total Axel Travel z-Axis ...... 2847 mm
Spindle Taper ................. #60 & #50 Quick Change
Spindle Speeds ................ 1-500 RPM
Boring Feeds .................. .16-1598 mm/min
Milling Feeds ................. .197-1001 mm/min
Rapid Traverse, x,y, .......... 3505 mm/min
Rapid Traverse, z ............. 2184 mm/min
Boring Feeds .................. .16 to 1598 mm/rev
Milling Feeds ................. .197 to 1000 mm/rev
Width Across Bedways .......... 2601 mm
Min. Distance Spdl to Runway .. 950 mm
Machine Weight ................ 200624 KG

EQUIPPED WITH:

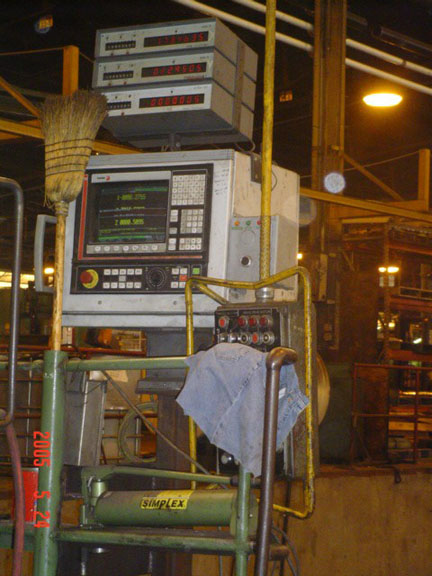

Fagor 2-Axis CNC Control (New 1998)
2-Axis Digital Readout System
Auxilliary Push Button Manual Controls
Auto Clamping
Way Covers
Individual Feed Motors
Eurotherm AV Vector Drive on X & Y Axes
30 KW Spindle Motor 460/3/60 Cycle
