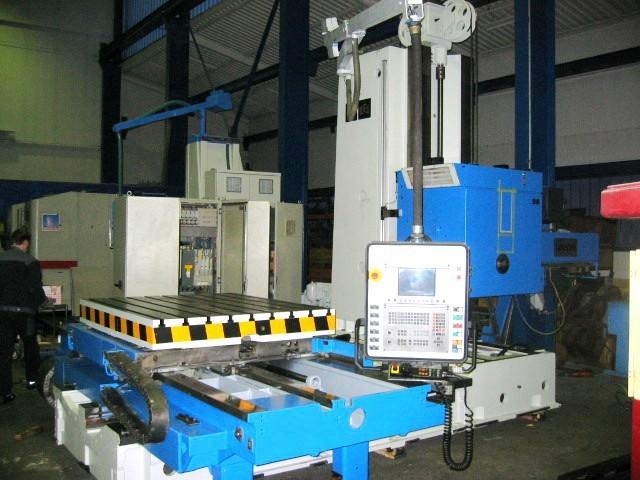

Union 130 mm CNC Table Type HBM BFT130/7

Manufacturer: Union
Model BFT130/7
New in 1985, CNC Retrofitted in 1998, Reconditioned partially in 1998/2003

spindle dia. = 130 mm/ISO 50
travel X/Y/Z = 2,235/1,620/1,205 mm
travel W-axis = 900 mm
travel B-axis (tabel round) = 360° (36.000 - liquidation 0,001°)
table clamping surface = 1,600 x 1,400 mm
nax. table load = 8 tons
spindle speeds = 5 - 1,000 rpm.
infinitely variable feeds in all axes = 2 - 2,500 mm/min.
rapid traverse in all axis up to 5,000 mm/min.
spindle power = 45 KW

weight = 34 tons
L x W x H = 6,600 x 5,150 x 4,550 mm
