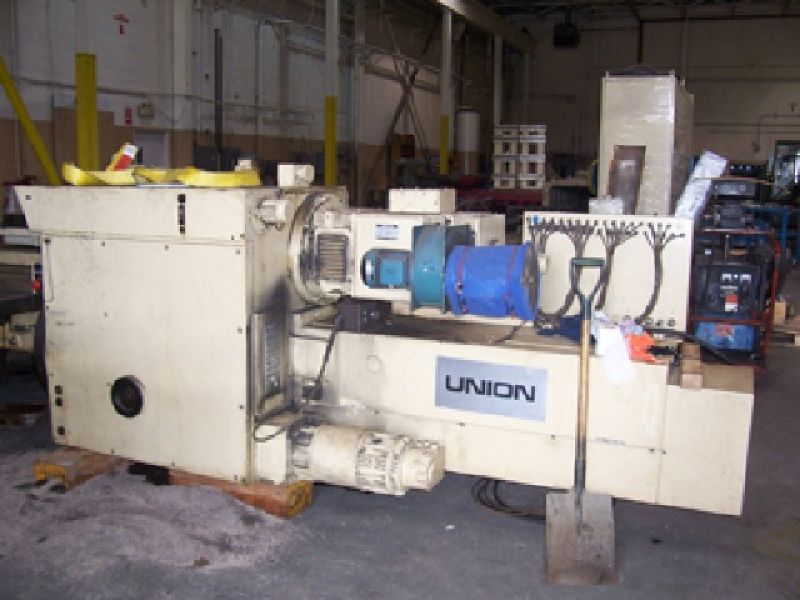

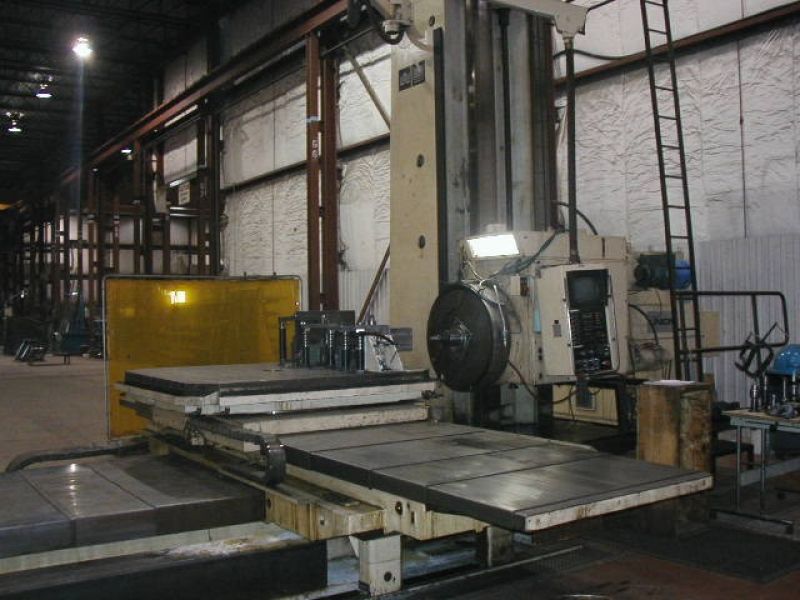

Union 130 mm Floor Type HBM BFT 130/5

- manufacturer: Union
- new in 1988
Haidenhain TNC 155 Control

Spindle 5.12" (130 mm)
Spindle Taper 50
Spindle Speeds 5-1,000 rpm
Facing Head Speeds 5-250 rpm
Diameter of Facing Head 31" (787 mm)
Travels:
X-axis (cross) 108" (2743 mm)
Y-axis (vertical) 98" (2489 mm)
Z-axis (saddle) 98" (2489 mm)
W-axis (spindle) 36" (914 mm)
U-axis (facing slide) 12" (305 mm)
Table Size; Built in rotary 72"x79" (1829 x 2007 mm)
Electrics 460v/3/60
Main Motor 60hp

Equipped With:
Heidenhain TNC 155 Control

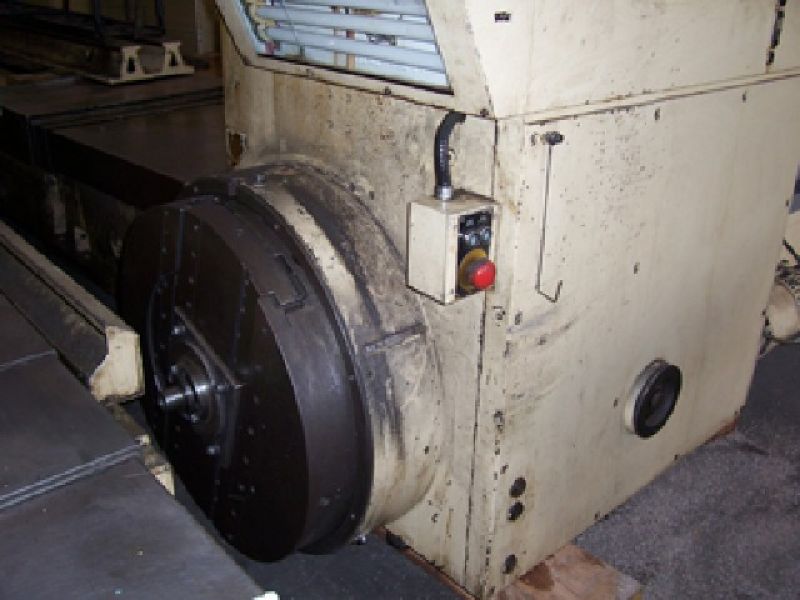

Built in Facing Head
Pendant Control
Power Draw Bar
