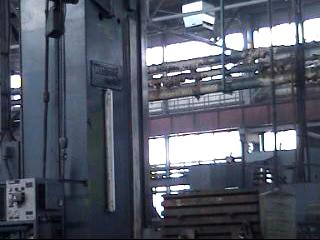

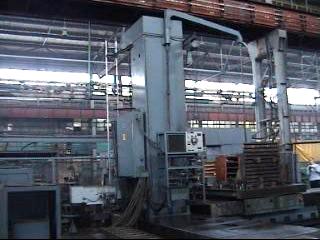

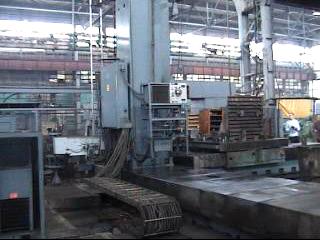

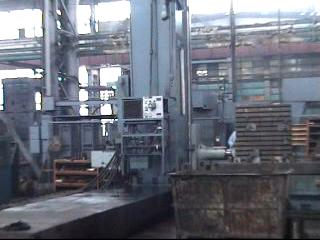

Wotan 160 mm Floor Type HBM Rapid 3

Manufacturer: Wotan
Model: Rapid 3
New in 1977

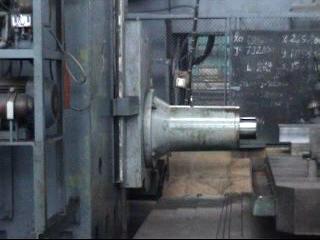

Spindle diameter 160 mm
Taper ISO 50
Spindle travel (Z axis) 1000 mm
Tool changing mechanic
Head travel (Y) 3000 mm
Min. distance between spindle and bed 810 mm
Speed range 49 steps between 2,5 and 1000 rot/min
Installed power 63 kW
Working feeds on axis X,Y,Z 1 – 2000 mm/min
0,01 – 9 mm/min
Rapid feed 10.000 mm/min
Travel on X axis 6.000 mm
Net weight 27.500 Kg
Max. work-piece weight 20.000 Kg

Rotary table
Work surface 2000x2500 mm
Rotation 360 grade
Table indexing 4x90 grade
Table travel 2500 mm
Table travel feed 1 – 2000 mm
Table rotation feed 1 – 110 grad/min
Rapid feed 10.000 mm
Table rotation rapid feed 1,5 rot/min
Table dimensions 5890x2500x1050 mm
Net weight for rotary table 19.000 Kg
